PU / TPU pneumatic tube extrusion line
A custom turnkey extrusion line for producing PU and TPU pneumatic air tubing, polyurethane tube and flexible industrial air tube.
A PU tube extrusion line is a complete production system for making flexible polyurethane tubing used in pneumatic control, automation equipment and industrial air transfer.
Jinxin supplies the configured extrusion line, not finished PU tubing, not a tubing trading service and not only a standalone extruder.
| Field | Reference |
|---|---|
| Line type | PU tube extrusion line / TPU tube extrusion line / PU pneumatic tubing extrusion machine |
| Finished products | PU pneumatic tube, TPU tube, PU air tube, polyurethane tube, flexible air tube |
| Main material | PU / TPU granules, reviewed according to hardness, grade and application |
| Typical market use | Pneumatic automation tubing, compressed air tube, tool air line, coating machinery air line, flexible control tubing |
| Tube size basis | Configured by buyer sample or drawing. Jinxin confirms the actual feasible range project by project. |
| Main process | Drying / feeding -> single screw extrusion -> tube die forming -> calibration and cooling -> haul-off -> cutting or winding |
| Optional measurement | Online laser diameter measurement, quoted when required |
| Quote basis | Tube OD / ID / wall thickness, material hardness, output target, tolerance, cutting or winding, electrical standard and service scope |
The line covers single screw extrusion, tube die forming, calibration and cooling, synchronized haul-off, cutting or winding, optional online laser diameter measurement and factory test-run support before shipment.

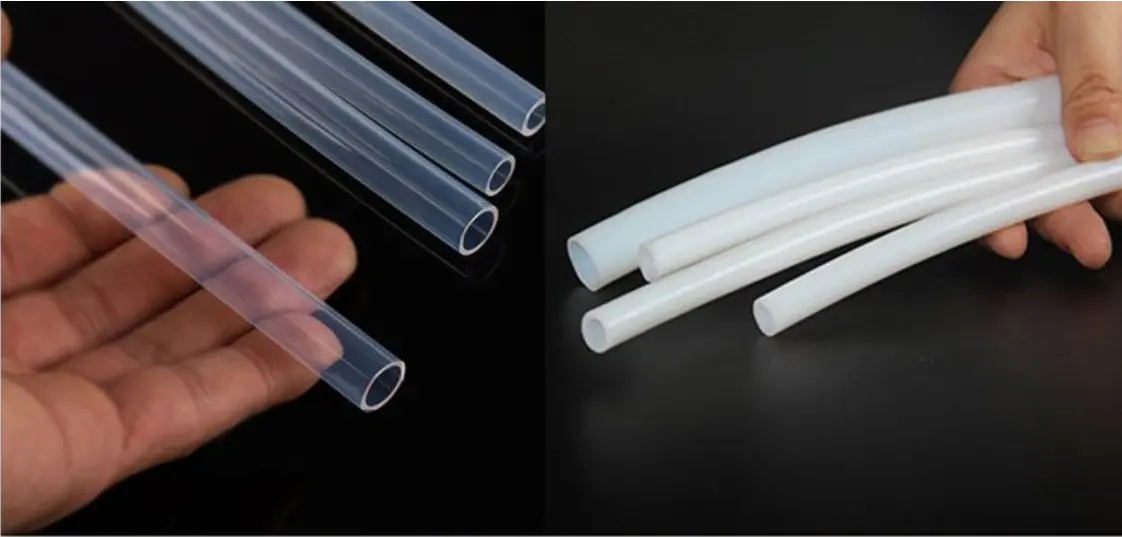

Typical products: PU pneumatic tube, TPU tube, PU air tube, polyurethane tube and flexible industrial air tube.
Applications
PU pneumatic tube is used for air lines in automation equipment, pneumatic cylinders, factory tooling, compressor systems and control circuits. The extrusion line is configured for stable OD, smooth surface, flexible bending and consistent winding or cutting.
TPU tube is often described by suppliers as polyurethane tube or TPU pipe. It uses a thermoplastic polyurethane material window and usually needs controlled drying, stable melt temperature, careful cooling and low-deformation haul-off. Jinxin can configure one PU / TPU line for the material grade and tube format confirmed by the buyer.
The line can be built for transparent, colored or marked tubing when the material, color and surface requirement are confirmed before quotation.
Some buyers and suppliers use the phrase PU air hose production line for flexible pneumatic tubing. On this page, "PU air hose" means non-braided flexible air tube made by extrusion. Braided, reinforced or spiral hose projects need separate confirmation because they may require additional reinforcement or coiling equipment.
PU / TPU pneumatic tubing is used where flexibility, bending performance and smooth air flow are more important than rigid pipe strength.
Stable OD, smooth inner path, reliable winding or cutting.
Flexible tube output, surface quality and tube roundness.
Material hardness, wall thickness and collection method.
Flexible routing and consistent tube diameter.
For projects using non-braided flexible PU air tubing.
Small-diameter tube stability and clean surface finish.
Application boundary: medical tubing, catheter tube, braided hose, reinforced hose, spiral spring tube and garden hose should not be treated as default coverage for this page. They can be reviewed as separate configurations only when the buyer confirms the product structure and Jinxin confirms the required downstream equipment.

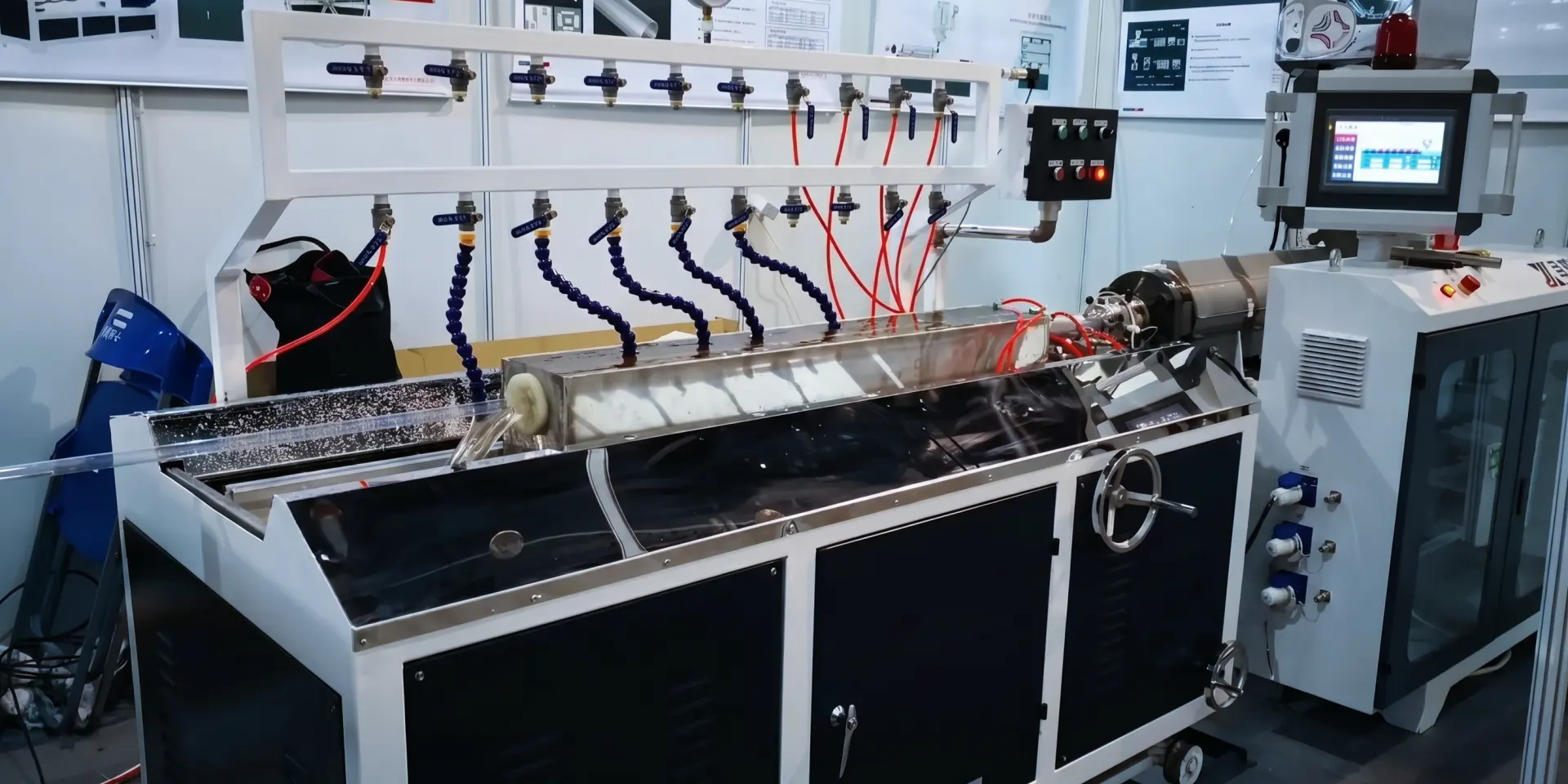

Jinxin can test the configured line before shipment with agreed tooling and material conditions when available. Startup references such as temperature, screw speed, haul-off speed and downstream settings are recorded for handover.
Send Tube Size & MaterialOnline laser diameter measurement is optional. It can be added when the buyer needs continuous OD monitoring, tighter QC records or higher automation. It is optional, not a default claim in the base line.
PU and TPU are flexible polyurethane materials, and their extrusion behavior is different from rigid pipe materials. Before selecting machine size, confirm the compound grade, hardness and finished tube use; the common plastics used in extrusion guide explains why TPU tubing needs a different process route from rigid PVC, PE or PP products.
For a PU / TPU pneumatic tube project, material preparation, melt stability, OD / ID / wall control and collection method must be treated as one configuration. Hygroscopic grades require a verified drying route before extrusion; see resin drying in plastic extrusion for the roles of temperature, time, airflow and dew point. The confirmed tube tolerance then determines tooling, calibration, optional laser measurement and haul-off control, while the delivery format determines cutting or winding equipment.
Some TPU / PU grades are sensitive to moisture. Residual moisture can create bubbles, surface defects or unstable extrusion. For moisture-sensitive projects, drying and stable material handling should be reviewed before confirming the line.
PU / TPU tube extrusion needs steady melt temperature and controlled shear. Overheating, unstable screw speed or a poorly matched die can create die lines, surface roughness or unstable tube dimensions.
Flexible TPU can show drag marks when downstream contact is too aggressive. Calibration surface, water cooling, haul-off contact and guide alignment should be matched to tube hardness and surface requirement.
Dimensional stability depends on die matching, cooling consistency and haul-off synchronization. For tighter OD control or continuous production records, online laser diameter measurement can be added as an optional configuration.
Soft flexible tubing can deform if downstream tension is too high. For coiled PU air tube, winding tension and reel handling matter as much as extrusion stability. For cut tube, cutter speed and tube support must be matched to line speed and hardness.
Select a stage to see its details.
PU / TPU grades are reviewed for moisture sensitivity. Drying can be configured when the compound needs it to reduce bubbles, splay marks and unstable surface.

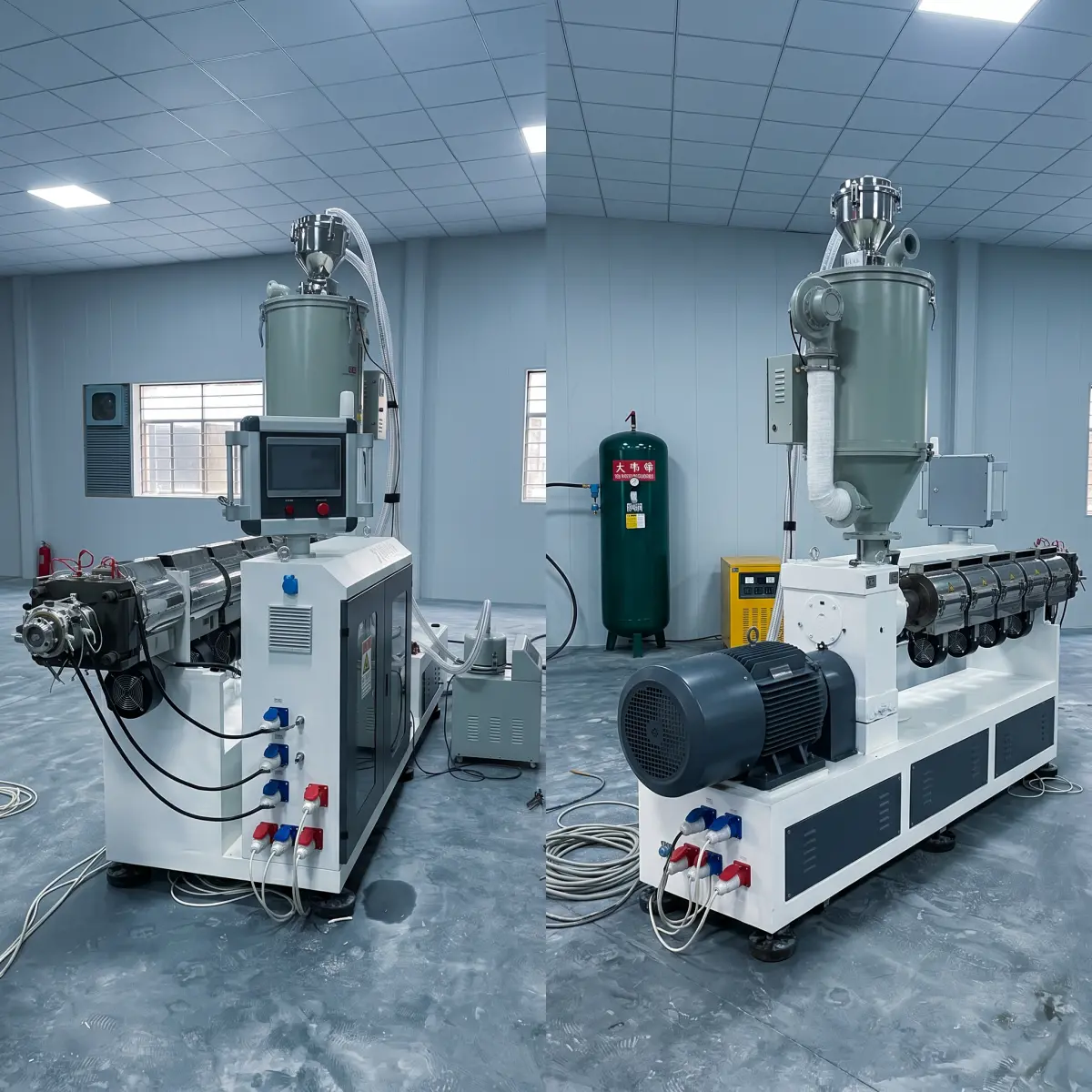

The screw, barrel temperature profile and drive control are selected for gentle plasticizing and stable melt delivery.
The die and core are matched to OD, ID and wall thickness. Each confirmed tube size normally needs its own tooling set.

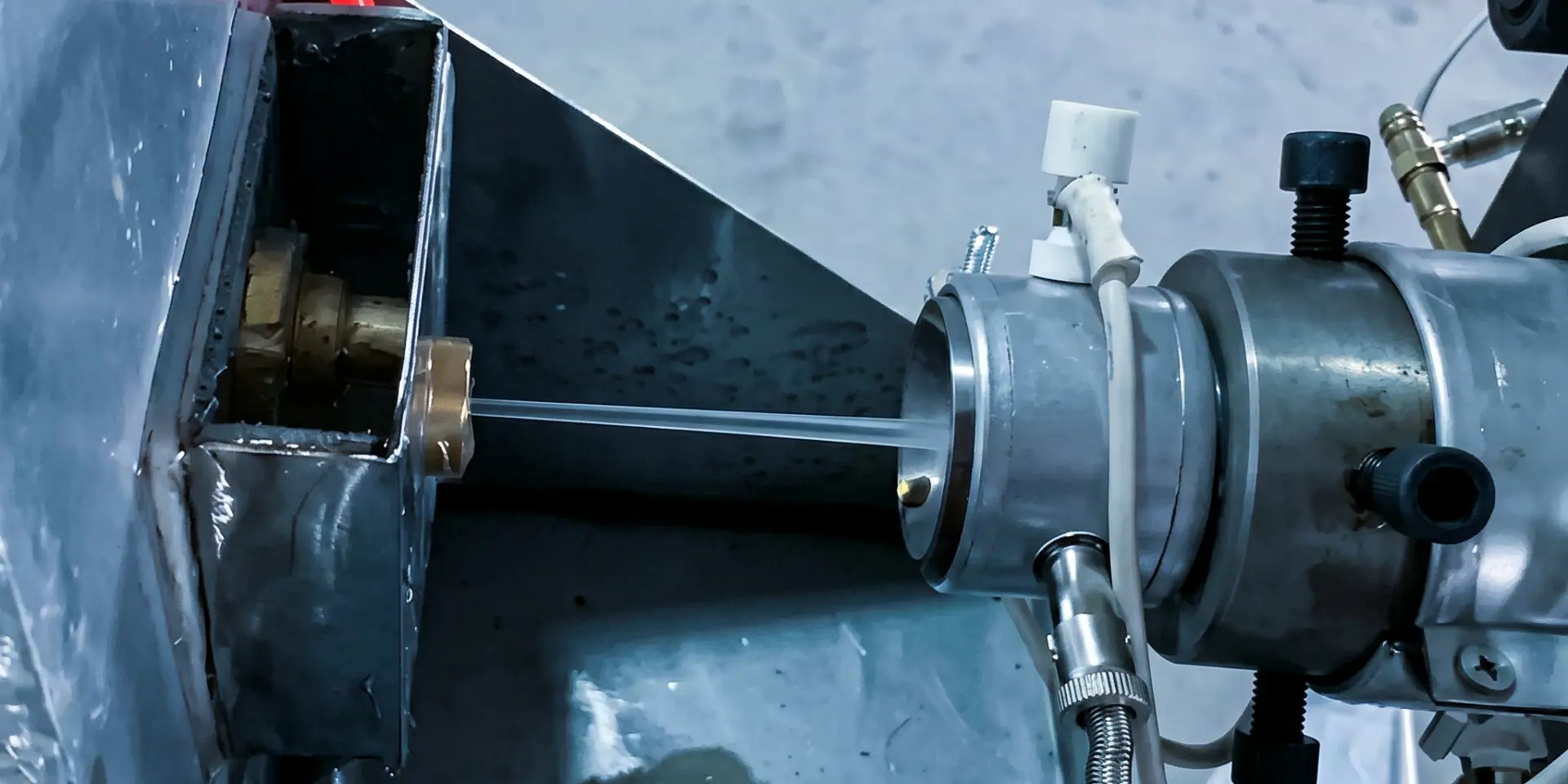

The tube enters the calibration and cooling section to stabilize roundness, OD and surface finish.

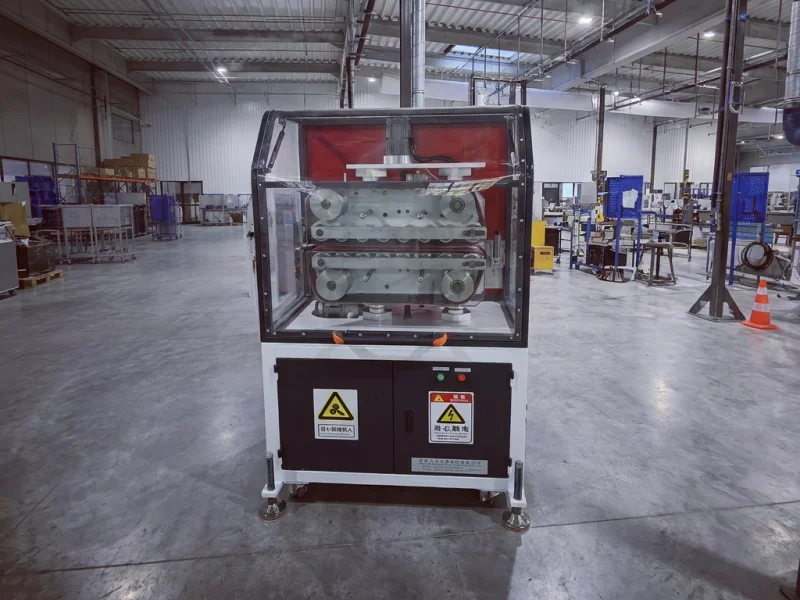

The pulling unit synchronizes with extrusion speed while reducing deformation on flexible tube.
The line can be configured for fixed-length cutting, single winding or dual-position winding depending on the buyer's packaging and downstream process.
Laser diameter measurement can be added when continuous OD monitoring or tighter QC records are required.
Process flow: PU / TPU granules -> drying and feeding -> single screw extrusion -> tube die -> calibration and cooling -> haul-off -> cutting or winding -> verified tube output
A Jinxin PU tube extrusion line is quoted as a turnkey configured production line. The equipment list is matched to the buyer's actual tube family rather than copied from a generic catalog model.
Material handling
| Detail | Reference |
|---|---|
| Included function | Loader and drying configuration reviewed according to PU / TPU grade and moisture sensitivity. |
Extrusion core
| Detail | Reference |
|---|---|
| Included function | Single screw extruder configured for flexible PU / TPU tube processing. |
Forming
| Detail | Reference |
|---|---|
| Included function | Tube die head and tooling matched to OD, ID and wall thickness. |
Sizing and cooling
| Detail | Reference |
|---|---|
| Included function | Calibration sleeve, cooling tank and water temperature support selected for tube stability. |
Pulling
| Detail | Reference |
|---|---|
| Included function | Synchronized haul-off selected to reduce flattening, drag marks and size drift. |
Collection
| Detail | Reference |
|---|---|
| Included function | Cutter or winder configured according to cut length, roll format and packing method. |
QC option
| Detail | Reference |
|---|---|
| Included function | Optional online laser diameter measuring system when required. |
Verification
| Detail | Reference |
|---|---|
| Included function | Factory test run with agreed tube target when material and tooling are available. |
Use this table as a quotation framework. Values are confirmed after Jinxin reviews the buyer's tube size, material and production target.
| Parameter | Reference |
|---|---|
| Tube material | PU / TPU granules, reviewed by grade and hardness |
| Finished tube | PU pneumatic tube, TPU tube, PU air tube, polyurethane tube, flexible air tubing |
| Tube OD range | Configured according to sample or drawing; small pneumatic tube ranges are reviewed project by project |
| Extruder platform | Single screw extruder selected according to tube size, output and material behavior |
| Die tooling | Dedicated die and core matched to OD, ID and wall thickness |
| Cooling section | Calibration and water cooling configured for roundness, shrinkage and surface quality |
| Haul-off | Synchronized pulling unit selected to reduce deformation of flexible tube |
| Collection | Cutting, winding or dual-position winding according to finished product format |
| Online measurement | Laser diameter measurement optional, quoted when required |
| Test run | Factory test run based on agreed material, tooling and tube target when available |
PU tube extrusion line pricing should be quoted by configuration, not by a generic machine name. A complete turnkey line includes the extrusion core, die tooling, calibration and cooling, haul-off, cutting or winding, electrical control, factory test-run scope and export packing.
No public fixed price is listed for this page yet because the actual cost depends strongly on tube size, material hardness, output target, optional laser measurement, winding or cutting method and service scope.
| Price Factor | Why It Changes The Quote |
|---|---|
| PU or TPU grade | Material behavior affects screw design, drying, temperature profile and testing method |
| Tube size family | Each OD / ID range affects tooling, calibration and cooling length |
| Tolerance target | Tighter OD control may require more precise tooling, cooling and optional laser measurement |
| Cutting or winding | Fixed-length tube and coiled tube need different downstream handling |
| Online laser measurement | Optional device for continuous OD monitoring and QC records |
| Factory test material | Buyer-supplied material helps Jinxin record more realistic startup references |
| Electrical and service scope | Voltage, component brand, installation and training are quoted by project |
Jinxin does not quote a generic tube line without checking the product. The extrusion unit, tube die, calibration and cooling, haul-off, cutting or winding and optional online laser diameter measurement are selected according to your actual PU / TPU tube sample, material grade and production requirement.
The quotation lists the selected equipment modules and major component brands, so buyers can compare the real line scope instead of comparing only a PU tube extruder or headline machine price.
Core electrical and control components are selected with maintenance and overseas serviceability in mind. Buyers can review the component list before confirming the final configuration.
ABB · WECON · CHINT · FOTEK · Siemens Beide
Jinxin Extruder focuses on configured single screw extrusion lines for pipes, tubes, hoses and profiles.
Tube size, material grade, hardness, tolerance, cutting or winding method and service scope are reviewed before quotation.
Jinxin can test the configured line before shipment with agreed tooling and material conditions when available.
The quotation is itemized by extruder platform, die tooling, calibration and cooling, haul-off, cutting or winding, optional laser measurement, factory test and service scope.
CE documentation is available for Jinxin main extruder models SJ30, SJ45, SJ50, SJ55 and SJ65 and is valid until 2029-07-22.
FAQ
A PU tube extrusion line is a complete production line for turning PU or TPU granules into flexible polyurethane tubing. It normally includes single screw extrusion, tube die tooling, calibration and cooling, synchronized haul-off, cutting or winding and electrical control. Jinxin configures the line around the buyer's tube sample, material grade and production target.
Yes. PU and TPU can be reviewed together for this type of pneumatic tubing project. The actual setup still depends on the TPU grade, hardness, moisture behavior, tube OD / ID, wall thickness and surface requirement. Jinxin confirms the screw, die, cooling and haul-off configuration after reviewing the material and tube target.
The actual range is confirmed by sample or drawing. Send OD, ID, wall thickness and material grade so Jinxin can confirm the feasible tooling and line configuration.
No. Online laser diameter measurement is optional. It can be added when the buyer needs continuous OD monitoring, tighter QC records, higher automation or process traceability. Standard OD control depends on matched die tooling, calibration, stable cooling, synchronized haul-off and factory test-run verification.
Choose winding when the finished product is sold or used as coiled air tube. Choose cutting when the tube is assembled into fixed-length parts. Flexible PU / TPU tubing can deform if downstream tension is too high, so the cutter, winder and haul-off should be selected together instead of treated as separate machines.
This page is for PU / TPU tube extrusion equipment. Some buyers call the product PU air hose, especially in pneumatic applications, but Jinxin is not offering finished hose or finished polyurethane tubing here. If the target product is braided, reinforced or spiral hose, the structure must be reviewed separately.
Medical tube and catheter tube are not default coverage for this page. They can involve special materials, clean production requirements, validation and compliance responsibilities outside a general pneumatic PU tube line. This page focuses on industrial PU / TPU pneumatic air tubing.
Send a tube sample, drawing or short video when available. At minimum, Jinxin needs the material, tube OD / ID / wall thickness and whether the output should be cut or wound. Hardness, color, tolerance and output target can be added if already known.
