Dip Tube Extrusion Line

Name: Precision Dip Tube Extrusion Line
Brand: Jinxin Extruder

A factory-tested PE / PP dip tube extrusion line for aerosol valve, lotion pump, perfume pump and trigger sprayer packaging.

PE / PP dip tube extrusion lineTypical 3-10mm OD range+/-0.05mm OD stability targetIn-line final cut shapes

Request Dip Tube Line Quotation View Price Factors

Quick Facts

A dip tube extrusion line is a complete single screw production system for making narrow PE (incl. LDPE) or PP tubes used inside aerosol valves, lotion pumps, perfume pumps and trigger sprayers.

A Jinxin turnkey line includes the extruder, die head, vacuum calibration tank, cooling and air-knife drying, haul-off, servo cutting or winding, control system, tooling and factory test run. Jinxin supplies the extrusion line, not finished dip tubes.

PE (incl. LDPE) / PP3-10mm typical application range+/-0.05mm OD targetIn-line final cut shapes

Field Reference

Finished tube use Aerosol valve, lotion pump, perfume pump, trigger sprayer

Materials PE (incl. LDPE) / PP according to application

Typical OD range 3-10mm typical application range, confirmed by tooling and finished tube sample

OD stability target +/-0.05mm after configuration and test run

Cut-end profile Flat (square) cut / V-notch (custom angle) / slanted cut / concave cut - formed in-line by the servo cutter, no secondary trimming. Each profile needs its own dedicated cutter head, specified before production.

Collection method Servo cutting, horizontal winding or dual-shaft winding

Optional measurement Laser or ultrasonic online diameter measurement, quoted when required

Line type Complete dip tube extrusion line, not a standalone extruder

Output Reference

Reference extrusion output: SJ35 is typically quoted around 8-10 kg/h, and SJ45 around 15-18 kg/h.

Line speed is calculated from tube gram weight, so the same kg/h output can convert to very different m/min or pcs/min. Jinxin calculates practical speed from the buyer's tube OD, ID, wall thickness, material density, cut length and collection method.

Recent sample reference: On SJ45 configurations, thicker LDPE dip tubes may convert to about 20 m/min, while lighter thin-wall PP dip tubes may calculate above 70 m/min. Final speed is confirmed after sample review and factory testing.

Output note: kg/h is the extrusion capacity; m/min is line speed; pcs/min also depends on cut length.

What's Included In The Dip Tube Line

A Jinxin dip tube extrusion line covers the complete production flow from plastic pellets to cut or wound dip tube output. The exact configuration is selected according to the buyer's tube sample, material, OD / ID / wall thickness, cut length, cut-end profile, output target and collection method.

Process Stage	Included Function
Extrusion and forming	SJ35 / SJ45 single screw platform, die head and tooling matched to the tube sample
Sizing and cooling	Vacuum calibration, cooling path and optional chiller support when required
Drying and pulling	360 degree air-knife drying and synchronized haul-off
Collection	Servo cutting, horizontal winding or dual-shaft winding according to the buyer's production flow
Verification	Sample-based line verification before shipment

Pellets in
single screw extrusion
die forming
vacuum calibration and cooling
air-knife drying
haul-off
servo cutting or winding
verified tube output

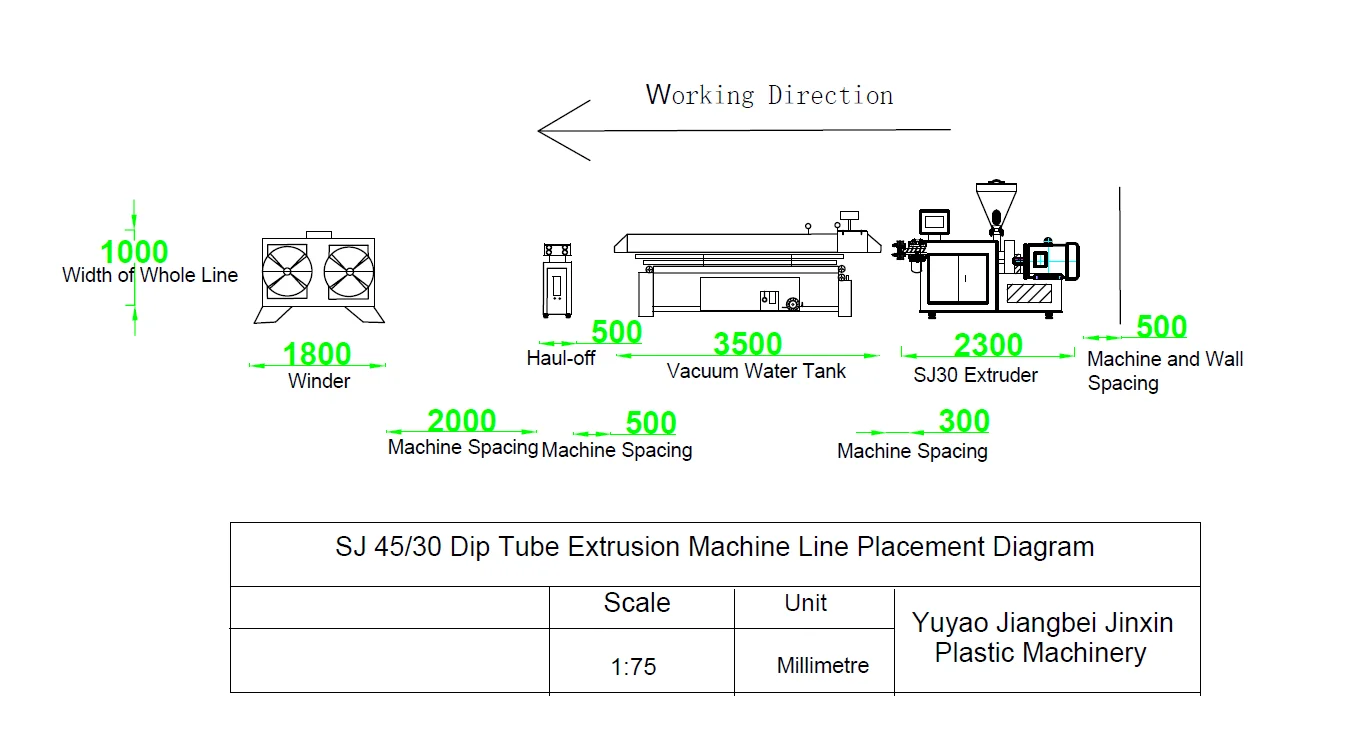

Dip tube extrusion line layout showing extruder, die head, vacuum calibration, air-knife drying, haul-off and servo cutting or winding — Typical dip tube extrusion line layout from pellets in to cutting or winding output.

FOB turnkey reference range

Dip Tube Extrusion Line Price Range

FOB turnkey reference: USD 38,000-55,000 for a complete PE (incl. LDPE) / PP dip tube extrusion line.

This is a reference range for a configured turnkey line, not a bare-machine teaser price. The final quotation depends on the buyer's product sample, OD range, material, tolerance target, cut-end profile, collection method, line speed, optional online measurement, electrical standard, service scope and destination port.

Optional items that affect price

Optional Item	When It Matters
Laser or ultrasonic online diameter measurement	For continuous OD monitoring, tighter QC records or higher automation
Custom cutter head	For flat (square) cut, V-notch (custom angle), slanted cut or concave cut geometry
Dual-shaft winder	For more continuous collection and smoother reel handling
Extra tooling sets	For additional OD or wall-thickness ranges beyond the confirmed quote
On-site installation	Quoted separately by destination and service days

Some marketplace listings show only a main extruder, basic tube line or starting price. A Jinxin quotation is built around the full production scope: extrusion, tooling, vacuum sizing, cooling, drying, haul-off, cutting or winding, chiller support, factory test run and export packing. Compare the equipment list, not only the headline price.

Final quote depends on sample, OD range, material, tolerance target, cut-end profile, collection method, line speed, optional measurement, service scope and destination port.

Send specs for exact FOB quote

Dip tube extrusion line running video cover for PE and PP tube production

Dip Tube Line Running Video

Watch a Jinxin dip tube extrusion line running in real production. New configured lines are still verified against the agreed tube sample, material and cut requirement before shipment.

Real production videoSample-based verification

Watch Dip Tube Line Running

In-Line Cut-End Profiles

Many dip tube producers buy a separate notching or cutting machine to form V-notch, slanted or concave ends after extrusion. Jinxin's servo flying-knife forms the final end profile during extrusion - flat (square) cut, V-notch (custom angle), slanted cut, or concave cut - so tubes come off the line ready to assemble, with no secondary trimming step.

Comparison	Process
Separate cutting step after extrusion	Separate notching or cutting after the tube is extruded
In-line final cut profile during extrusion	Final cut-end profile formed during extrusion

Each profile is produced by its own dedicated cutter head, built to the buyer's specification. The V-notch angle is customizable. The required cut shape, V-angle and tube length must be confirmed before production and cannot be changed after the cutter head is made; additional profiles need additional heads, which can be quoted together.

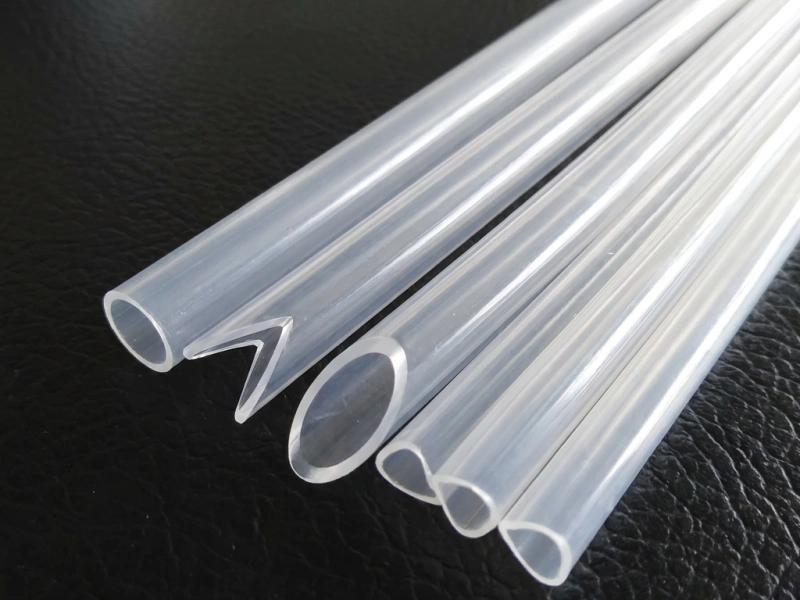

Flat (square), V-notch, slanted and concave cut-end profiles formed in-line - no separate cutting machine required.

Complete Dip Tube Production Line Modules

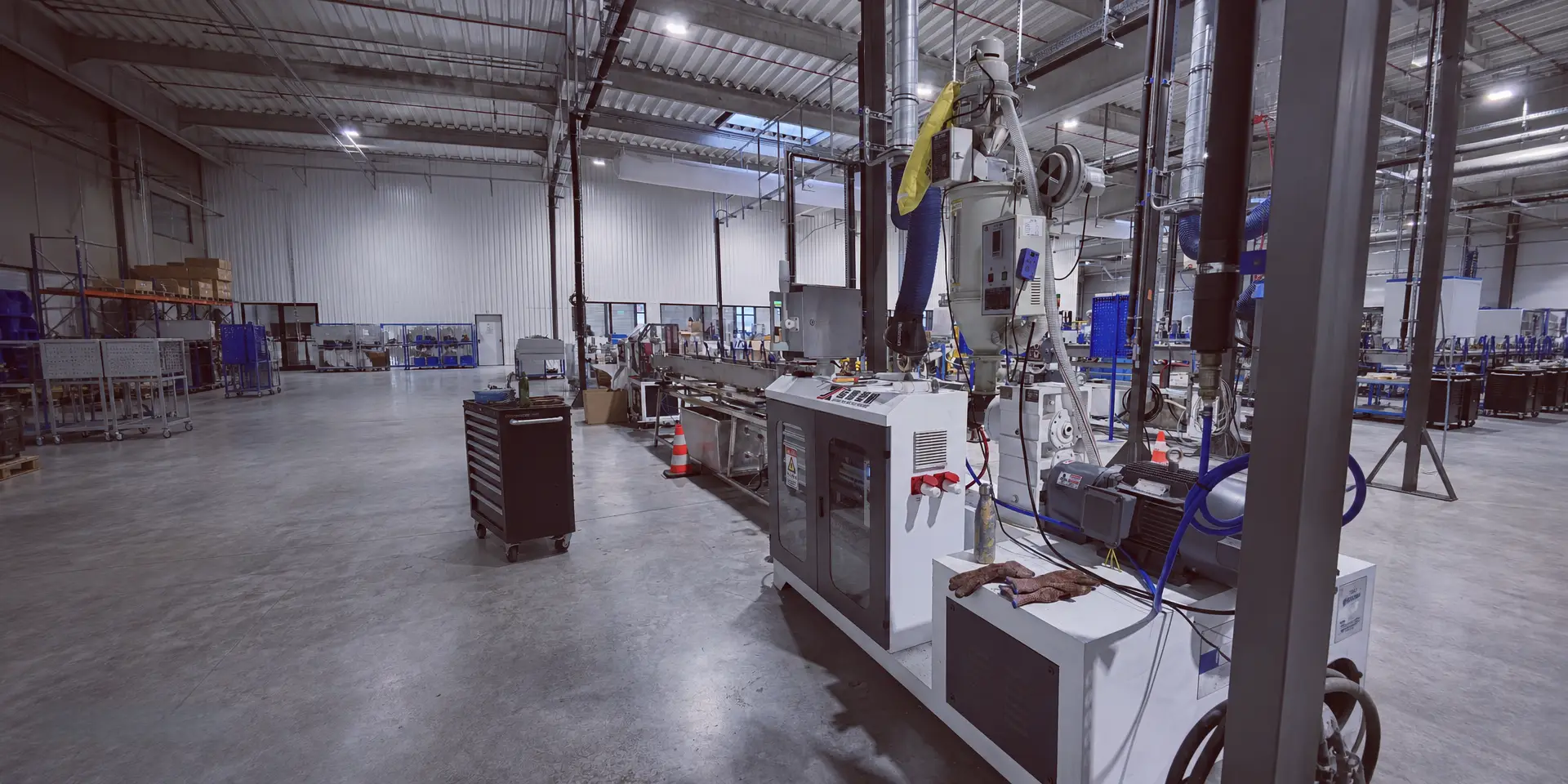

Jinxin dip tube extrusion line in factory — single screw extruder, vacuum calibration, haul-off and servo cutting — Complete PE / PP dip tube extrusion line — from extruder to haul-off and servo cutting.

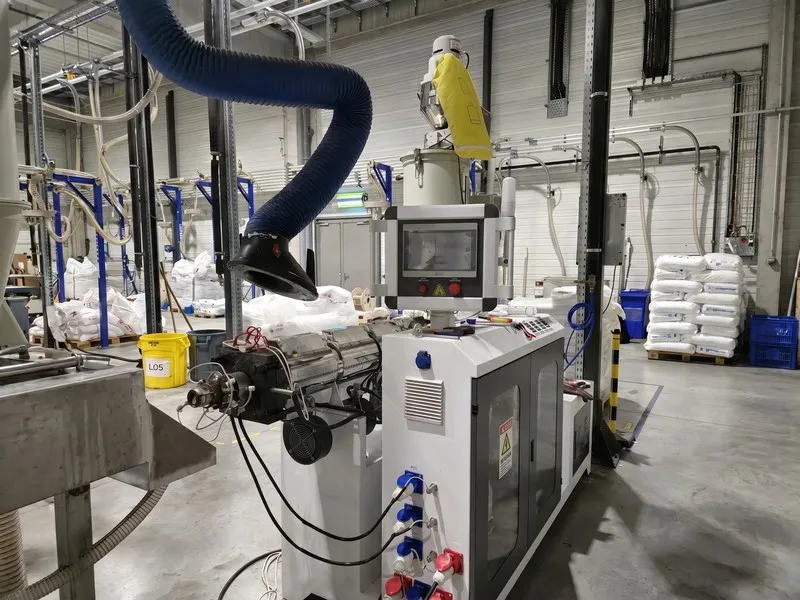

PLC controlled single screw extruder for small diameter PE and PP dip tube production

Main extrusion module

Precision Single Screw Extruder

The single screw extruder plasticizes PE (incl. LDPE) or PP pellets and delivers stable melt flow to the die head. For typical 3-10mm dip tube production, Jinxin configures SJ35 or SJ45 platforms so the screw output, melt residence time and temperature control match stable PE / PP small-tube production.

Detail	Reference
Motor	Siemens Beide inverter-duty motor.
Drive	Direct coupling design without belt transmission.
Inverter	ABB ACS580 for stable speed control.
Control	WECON PLC and touchscreen interface.
Screw	Nitrided steel screw configured for PE (incl. LDPE) / PP melt stability.
Heating	Multi-zone temperature control with SSR control.

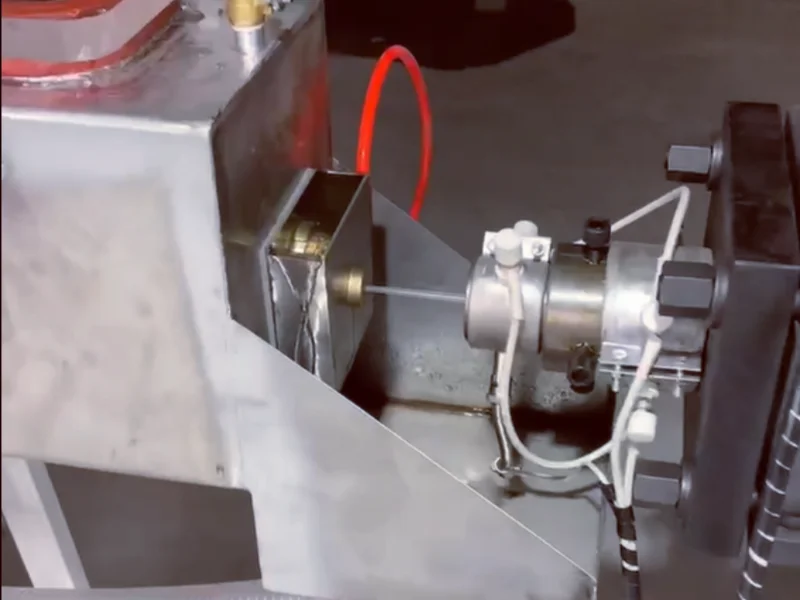

Die head and tube entry for small diameter dip tube extrusion tooling

Tube forming tooling

Die Head And Tooling Set

The die head forms the thin-wall tube and must match the target OD, wall thickness and drawdown behavior. Tooling is configured for the buyer's sample rather than copied from a generic tube size.

Function	Why It Matters
Polished flow channel	Helps reduce melt stress and tube instability.
Matched core and sleeve	Controls OD, ID and wall thickness.
In-house adjustment	Allows correction during factory testing before shipment.
Size-specific tooling	Supports different tube sizes through matched tooling sets.

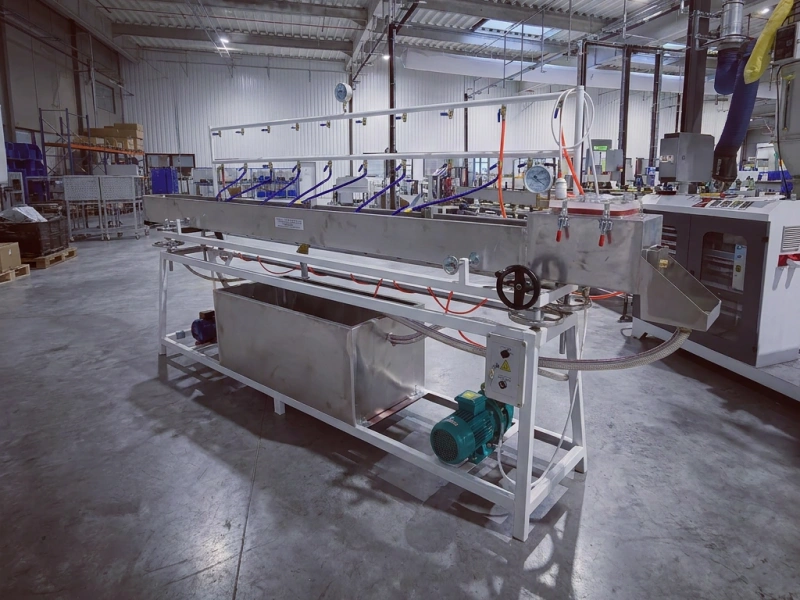

OD calibration

Vacuum Calibration And Cooling Tank

The vacuum tank stabilizes tube roundness and OD while the tube cools. For dip tubes, this is one of the main controls behind assembly fit and leakage prevention.

Detail	Reference
Construction	SUS304 stainless steel tank.
Alignment	3-axis adjustment for die-to-haul-off centering.
Vacuum	Water-pump vacuum system for stable negative pressure.
Tube path	Integrated pressure rollers help keep the tube immersed.
OD control	Supports +/-0.05mm OD stability target after configuration.

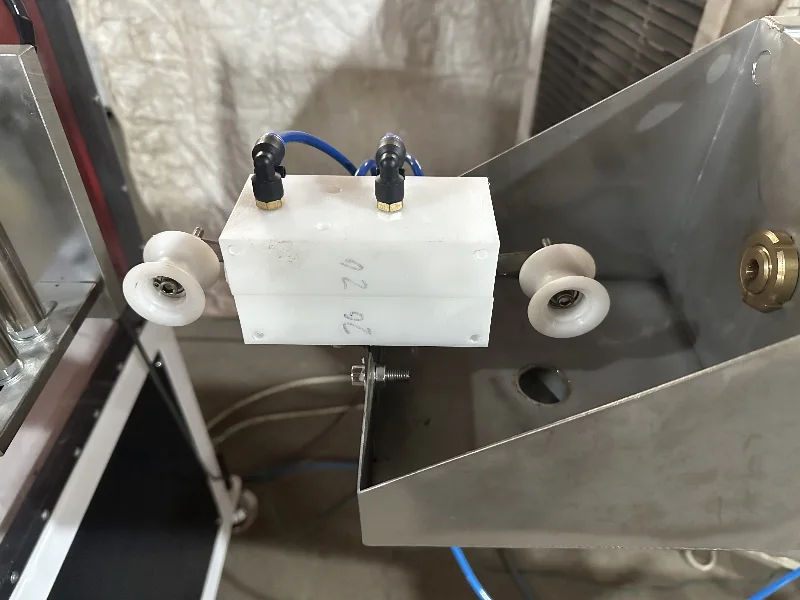

Air knife drying unit before haul off on dip tube extrusion line

Surface drying

Integrated Air-Knife Drying

The circular air-knife channel removes surface water before haul-off and cutting. This reduces traction slip and helps keep cut length and OD stability more consistent.

Function	Benefit
360 degree air wiping	Removes water around the tube surface.
Drier haul-off contact	Reduces micro-slippage in pulling rollers.
More stable cutting	Helps improve cut length repeatability.
Cleaner collection	Reduces residual water before winding or packing.

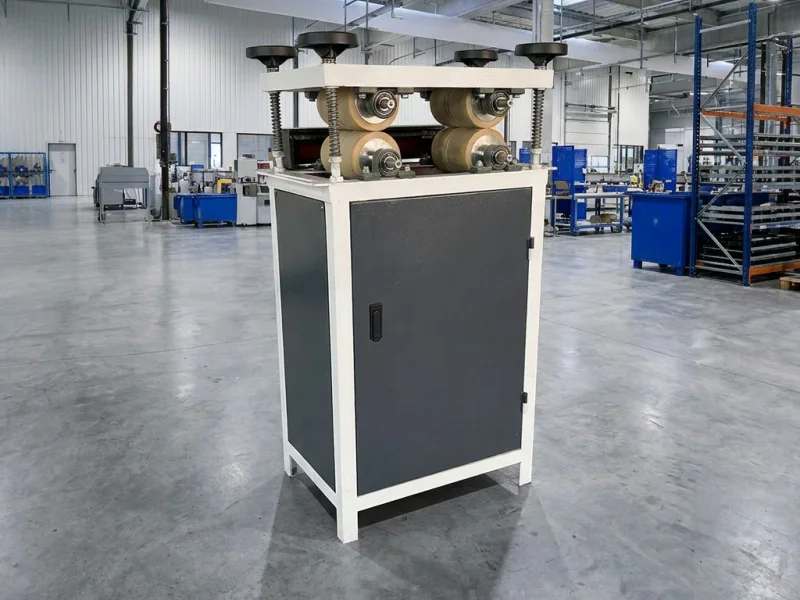

Haul off system for stable pulling of thin wall dip tubes

Synchronized pulling

Precision Haul-Off Options

The haul-off system synchronizes tube pulling with extrusion output. For typical 3-10mm thin-wall dip tubes, Jinxin usually configures a compact roller-type haul-off because the tube is small, light and does not require high pulling force. A precisely adjustable roller haul-off gives stable traction with a compact footprint. The key is fine roller gap and pressure control: too much pressure can mark or deform a thin tube, while too little pressure can cause slip, runout or length variation. Belt-type haul-off can be quoted when the tube material, softness or tolerance target requires a different pulling method.

Option	Best For
Adjustable roller haul-off	Typical 3-10mm thin-wall dip tubes, compact layout and stable pulling.
Fine roller gap / pressure control	Reduces slip, tube marking and deformation risk.
Belt-type haul-off	Quoted when tube softness, wall thickness or tolerance target requires it.
Synchronized speed control	Supports stable OD and repeatable cut length.

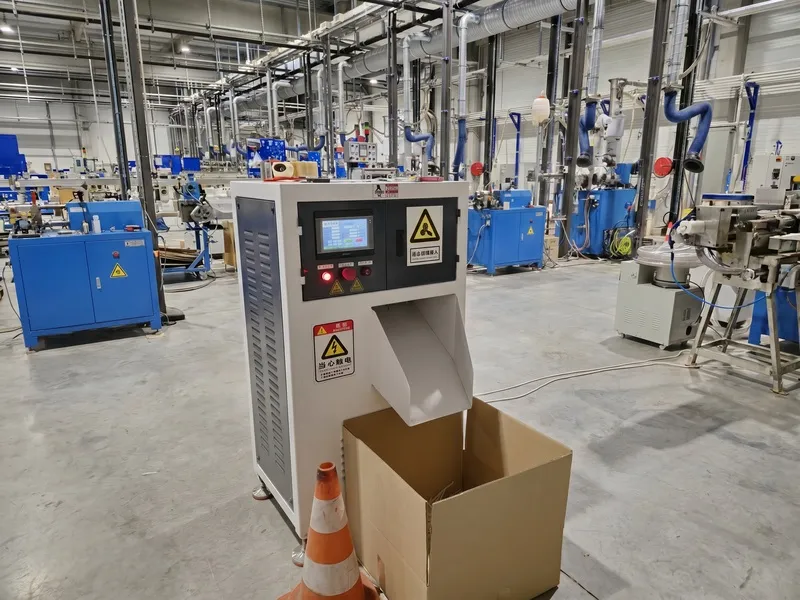

Servo flying knife cutter for in line dip tube cut end profiles

Cutting system

Delta Servo Cutting System

The servo flying-knife cuts each dip tube to length and forms the final end profile in-line. The cutter head can be customized to the required shape - flat (square), V-notch, slanted or concave.

Detail	Reference
Drive	Delta servo motor and driver.
Length control	Encoder-based repeatable cutting.
Cut profiles	Flat (square) cut, V-notch (custom angle), slanted cut or concave cut.
Interface	Touchscreen settings for length, counting and alarm.
Custom head	Quoted according to required cut geometry.

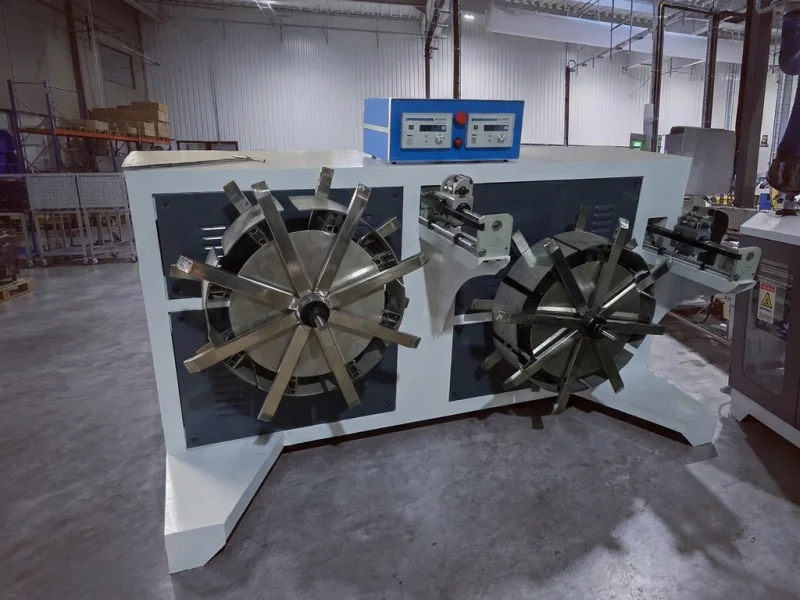

Tube collection

Horizontal Or Dual-Shaft Winder

Some dip tube production uses winding before later cutting or assembly. Jinxin configures the winding system according to tube softness, reel size and production flow.

Option	Purpose
Horizontal winder	Gentler collection for fine or soft tubes.
Dual-shaft winder	More continuous winding for standard production.
Magnetic powder clutch	Supports steady winding tension.
Traversing unit	Keeps tube layers neat on the reel.
Custom reel setup	Matched to packaging or downstream handling.

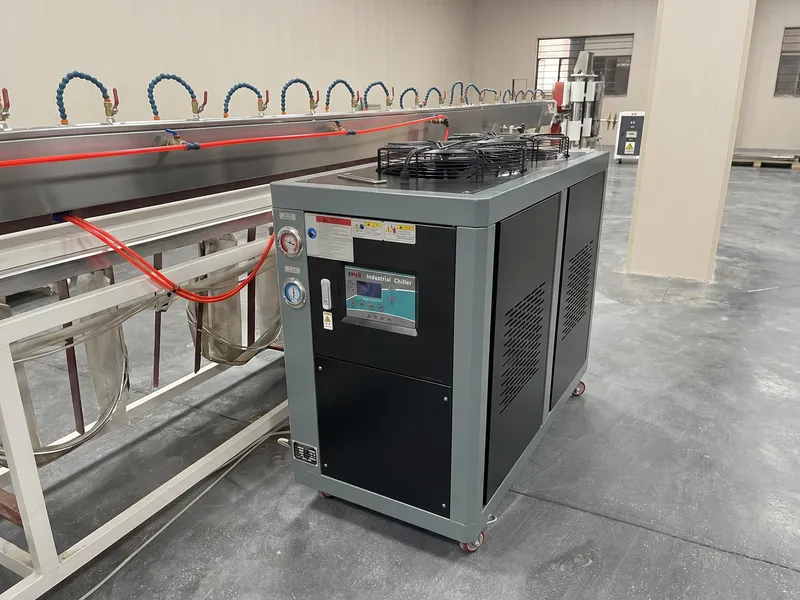

Cooling water support

Industrial Water Chiller

Stable cooling water helps keep the calibration process consistent during continuous production. The chiller reduces dependence on unstable civil water temperature.

Item	Reference
Type	Air-cooled or water-cooled unit according to factory conditions.
Role	Supports stable calibration and cooling temperature.
Benefit	Helps reduce OD drift caused by water temperature changes.

Applications

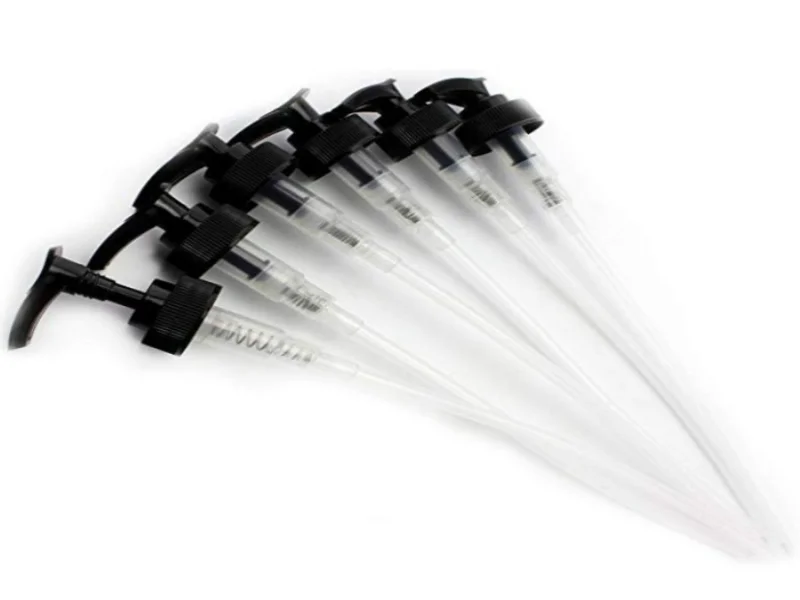

Lotion pump dip tubes used with bottle pump packaging

Lotion Pump Dip Tube Production

Lotion pump dip tubes need a stable interference fit inside the pump housing. LDPE is commonly used because it can bend inside the bottle while still holding shape during automated insertion.

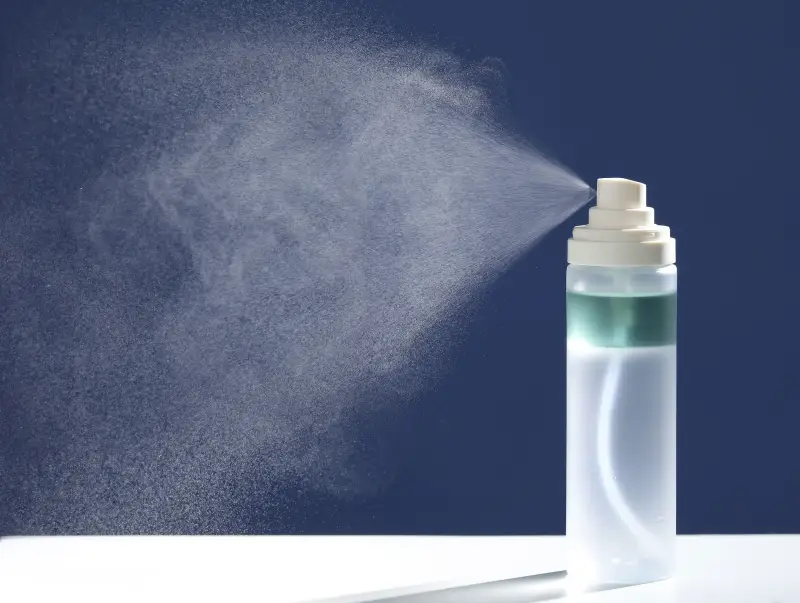

Perfume pump dip tube for fine mist sprayer application

Perfume Pump Dip Tube Production

Perfume pump tubes are often narrow and thin-wall. They need clean cut ends, stable OD and sometimes V-notch or slanted cuts to match fine mist sprayer geometry.

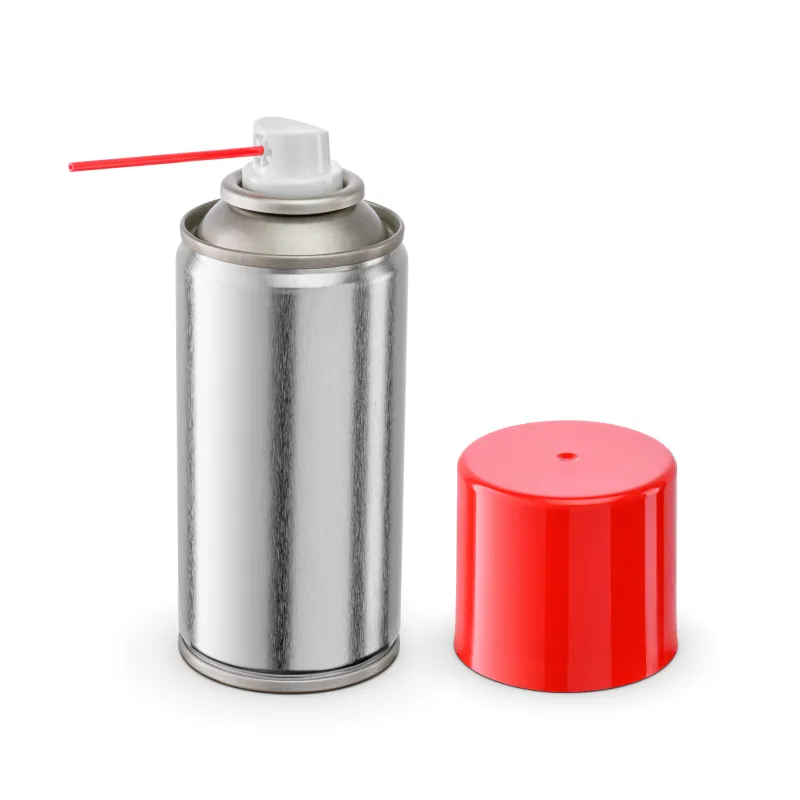

PP aerosol valve dip tube for pressurized container application

Aerosol Valve Dip Tube Extrusion

Aerosol valve dip tubes often use PE or PP depending on stiffness, chemical resistance and valve design. Stable roundness and material consistency help the tube fit reliably in pressurized packaging.

Trigger sprayer dip tube for household cleaning bottle application

Trigger Sprayer Dip Tube Production

Trigger sprayer dip tubes for household and garden bottles may use larger diameters and wider tolerance windows than cosmetic pump tubes. Stable drying, haul-off and cutting still matter because surface moisture can cause traction slip and length variation.

Why Manufacturers And Procurement Leaders Choose Jinxin

Product-Based Factory Testing

Jinxin test-runs the agreed product type before shipment instead of only testing the machine empty. The goal is to confirm that the die, calibration, haul-off, cutting or winding system can produce the buyer's target dip tube under real extrusion conditions.

Dimensional verification: Confirms OD, wall thickness and cut-end profile against the agreed sample.
Startup reference data: Gives operators practical baseline settings after installation.
Material calibration: Helps reduce startup guesswork when the buyer sends actual pellets.
Test-run video: Provides visible proof before shipping.

Engineer adjusting extrusion die head during factory test run for stable product output — Die head adjustment during factory test run

Transparent Line-By-Line Quoting

Jinxin quotes by configuration, not by a vague machine title. The quotation lists the extruder, tooling, tanks, haul-off, cutter or winder, chiller, control system, component brands, optional items and service scope.

Equipment list: Makes the scope comparable with other suppliers.
Component brands: Helps maintenance teams plan future replacement.
Optional items: Separates laser/ultrasonic measurement, custom cutter head or extra tooling from the base line.
Service items: Keeps installation and travel cost visible.

Jinxin Extruder export packing and container loading for extrusion line shipment — Export packing and container loading

Global-Service Component Strategy

For core drives and controls, Jinxin uses industrial components selected for practical maintenance in overseas factories.

Motor and drive: Siemens Beide and ABB are used according to configuration.
PLC and HMI: WECON is used for practical line operation.
Servo system: Delta servo system supports repeatable cutting.

Service-ready electrical component brands

Siemens BeideABBWECONCHINTDelta

Trust Credentials

Jinxin Extruder is the manufacturing brand of Yuyao Jiangbei Jinxin Plastic Machinery Co., Ltd., a Ningbo-based extrusion equipment factory focused on configured single screw production lines. For dip tube projects, line configuration, factory testing, startup references and after-sales support are handled by Jinxin's factory team.

Manufacturing entity

Yuyao Jiangbei Jinxin Plastic Machinery Co., Ltd.

Brand

Jinxin Extruder

Founded

2012, Ningbo, Zhejiang, China

Focus

Single screw extrusion lines — no twin screw, no used equipment

Factory role

Direct project communication, line configuration, factory testing and after-sales support are handled by Jinxin's factory team

Export reach

15+ countries across Asia, Europe, Africa, and the Americas

Export support

Export packing and shipment documentation support after project confirmation

Repurchase signal

60% of international clients expand capacity with Jinxin

Founder credential

Nationally certified Electrician Operation Certificate

CE support

Equipment built with CE compliance and documentation support according to project scope

Business license

CE and export document support

What Our Clients Say

We run extrusion lines from multiple suppliers, but Jinxin's 360 degree air-knife was clearly the best moisture-removal design we had seen. We ended up ordering additional air-knife units from them to retrofit onto our existing production lines. It solved a residual-water problem that had been causing cut-quality issues for months.

Production Manager, Dip Tube Manufacturer, France

We needed V-cut dip tubes with a specific angle for our perfume pump assembly line. Jinxin built the custom cutter head exactly to our specification, and the cut quality has been consistent from day one. Every tube fits the pump fitting without rework.

Owner, Dip Tube Manufacturer, Thailand

FAQ

FAQ - Dip Tube Extrusion Line

01 PE (including LDPE) or PP - which material should a dip tube extrusion line process?

PE, especially LDPE, is common for lotion pump, perfume pump and many cosmetic dip tubes because it provides flexibility inside the bottle. PP is used when higher stiffness or chemical resistance is needed, such as some aerosol valve tube applications. Jinxin confirms the screw, temperature profile and tooling according to the buyer's material.

02 Is 3-10mm OD enough for my project, or what if I need 2mm or 12mm?

3-10mm covers most cosmetic pump, perfume pump, trigger sprayer and aerosol valve dip tubes - it is a typical application range, not the mechanical limit of the extruder. Within this range, changing tube OD requires a matching die tooling set (die and core) and calibration sleeve.

For diameters outside this range - finer tubes around 2mm or larger tubes around 12mm - Jinxin reviews the target size against tooling, cooling and haul-off capability. Smaller tubes are more sensitive to cooling stability and haul-off alignment. Send a sample or drawing and Jinxin can confirm feasibility and configuration.

03 Some suppliers advertise 300 m/min dip tube lines - is faster better for my project?

For dip tubes, no. A headline like "300 m/min" is line speed, not output. A thin dip tube weighs very little per meter, so high line speed mainly adds cooling-tank length, footprint and energy use, not tube quality. Those lines are built for one tube size in huge volumes. For multi-size cosmetic, perfume, pump and aerosol dip tubes, +/-0.05mm OD precision, clean cut ends and fast changeover matter far more than peak m/min.

04 Is laser or ultrasonic online measurement standard?

No. Laser or ultrasonic online diameter measurement is optional. It can be added when the buyer needs continuous OD monitoring, tighter QC records, higher automation or traceability. Standard OD control relies on die matching, vacuum calibration, stable cooling, synchronized haul-off and factory test-run verification.

05 Do I need a separate dip tube cutting machine for V-notch or slanted ends?

No. The Jinxin line cuts the end profile in-line during production - flat (square) cut, V-notch (custom angle), slanted cut or concave cut - with no secondary trimming. The buyer specifies the profile and V-angle in advance; Jinxin builds the matching cutter head and verifies it on your material during the pre-shipment trial.

06 Can one line cut several end profiles, or change the profile later?

Each profile - flat (square) cut, V-notch (custom angle), slanted cut or concave cut - is formed by a dedicated cutter head built to your specification. The shape and V-angle must be confirmed before production and cannot be changed after the head is made; additional profiles need additional heads, which can be quoted together. The servo flying-knife then cuts that profile to length in-line, without stopping the line.

07 How do you ensure the dip tubes fit valves and pumps without falling off?

The key is stable OD and roundness - and verifying it the way assembly actually works, not only by measuring numbers. Jinxin controls OD and roundness through matched die tooling, vacuum calibration and synchronized haul-off, with cut ends formed in-line for clean edges.

During the factory test run, Jinxin uses a stainless steel plug gauge matched to the tube specification to test the actual fit - sliding the gauge into the tube confirms whether the clearance is right for assembly. This is closer to real pump and valve fitting than reading caliper numbers alone.

If the buyer can send their actual valve or pump components, Jinxin can also test-fit against those. Most dip tube producers do not assemble the final pump, so plug gauge verification is normally sufficient to confirm that the tube meets the fitting specification.

08 Can one line cover multiple applications, tube sizes and small batches? What do I change when switching?

Yes. Lotion pump, perfume pump, aerosol valve and trigger sprayer dip tubes share the same extruder platform - the differences are in tooling, cut-end profile and collection method.

To be specific about what changes: switching tube OD requires changing the die and core (each OD has its own tooling set), along with the matching calibration sleeve. Vacuum and haul-off synchronization are reset, but the main extruder does not change. The practical approach for multi-size production is to have a tooling set for each commonly used OD, then swap tooling between runs rather than locking the line to one fixed size.

The quotation should be based on the buyer's actual tube family - how many ODs, which cut-end profiles, which collection method - not a generic high-speed catalog model.

09 What is the lead time, warranty and packing for ocean freight?

Lead time is confirmed according to configuration, tooling, electrical setup and factory test-run requirement. Many standard dip tube line projects are commonly planned around 50-60 working days from deposit. Warranty is quoted by full-line scope and component terms. Packing uses fumigation-free wooden crates, anti-rust protection and moisture-proof film, with larger stainless-steel tanks packed separately when required.

Dip tube extrusion line quote

Request My Dip Tube Line Quotation

Send your dip tube specification and Jinxin will prepare an itemized FOB quotation for the complete extrusion line scope. Tell us the product you want to make and we will recommend the right extrusion, sizing, cutting and collection configuration.

Application: Lotion pump / perfume pump / aerosol valve / trigger sprayer
Material: PE (incl. LDPE) / PP
Tube size: OD, ID and wall thickness
Cut-end profile: Flat (square) cut / V-notch (custom angle) / slanted cut / concave cut
Cut length: Required tube length and tolerance
Collection method: Cutting / horizontal winding / dual-shaft winding
Output target: Practical capacity or line speed target
QC requirement: Standard test-run verification or optional online measurement
Factory standard: Voltage, frequency and available space
Destination: Country and port
